VZ Torque(TM) Overview
VZ Torque(TM)

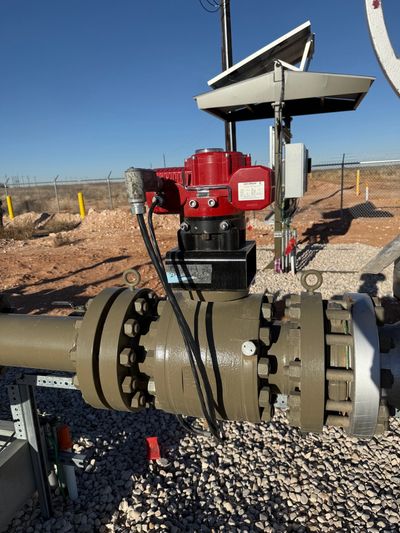

VZ Torque(TM) is the industry’s most comprehensive line of quarter turn, explosion proof, fail safe electric actuators with battery backup. Ranging from 442 in-lb to an impressive 26,650 in-lb, we have all your actuator needs covered! This exceptional product line is exclusively available through VanZandt Controls/Eagle Automation.
Description:
The VZ Torque(TM) series features fail-safe electric actuators. In the event of a power loss, a battery (for models 2,655 in-lb and above) or a supercapacitor (for models 1,770 in-lb and below) will automatically drive the actuator to a preset fail position, whether that be fully open or fully closed. The fail position is field selectable to suit your specific requirements.
Features:
- Quarter turn operation (the VZT-442 can achieve 180 degrees)
- Heavy-duty motor equipped with thermal overload protection
- Rugged IP68/NEMA 4X aluminum alloy housing for durability
- C3 level corrosion resistance, boasting a powder coating that withstands 1,000 hours of salt spray
- CSA CLS 1 DIV 1 GRP C and D, T5 compliance for safety
- Self-locking high-strength gear train maintains the last known position
- Standard ISO5211 for direct installation
- Manual override capability with a handwheel for convenience
- Flexible installation at any angle to suit your setup
- Integrated heater to eliminate condensation
- The SUPERCAPACITOR fail-safe option is now available, complete with an over-torque protection switch to enhance safety.
V-Tork Actuators Overview
442 in-lb
3,450 in-lb to 5,310 in-lb
850 in-lb to 1,770 in-lb
850 in-lb to 1,770 in-lb
3,450 in-lb to 5,310 in-lb
850 in-lb to 1,770 in-lb
3,450 in-lb to 5,310 in-lb
3,450 in-lb to 5,310 in-lb
3,450 in-lb to 5,310 in-lb
8,850 in-lb to 13,276 in-lb
8,850 in-lb to 13,276 in-lb
8,850 in-lb to 13,276 in-lb
26,650 in-lb
8,850 in-lb to 13,276 in-lb
8,850 in-lb to 13,276 in-lb
